Daylight LED Fresnel Light

The GODOX F7-120D is a professional 120W daylight LED Fresnel light designed for studio production, video recording, broadcasting, stage applications, theater, virtual production, and other environments where controlled directional lighting is required. Its fixed 5600K daylight output provides a consistent color temperature, while the Fresnel optical system allows the character and spread of the light to be adjusted without changing the fixture.

High-Output 120W COB LED

The F7-120D uses a high-output COB LED source with an input power of approximately 120W. At 5600K and 100% brightness, it can produce up to approximately 71,100 lux at a distance of 1 meter in spot mode. Even at a wider beam setting, the fixture maintains useful illumination, making it suitable for both focused key lighting and broader area illumination.

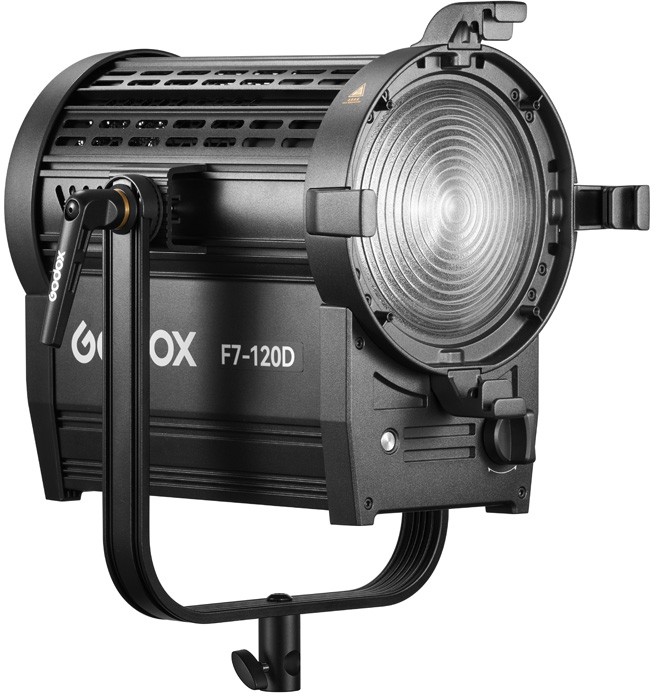

Adjustable Fresnel Beam

The integrated 7-inch Fresnel lens provides a continuously adjustable beam angle from 15° to 60°. Moving between the narrow 15° setting and the wider 60° setting allows the light to be used either as a concentrated spotlight with greater throw or as a broader source covering a larger area. This optical adjustment makes it possible to change the lighting effect without repositioning the fixture.

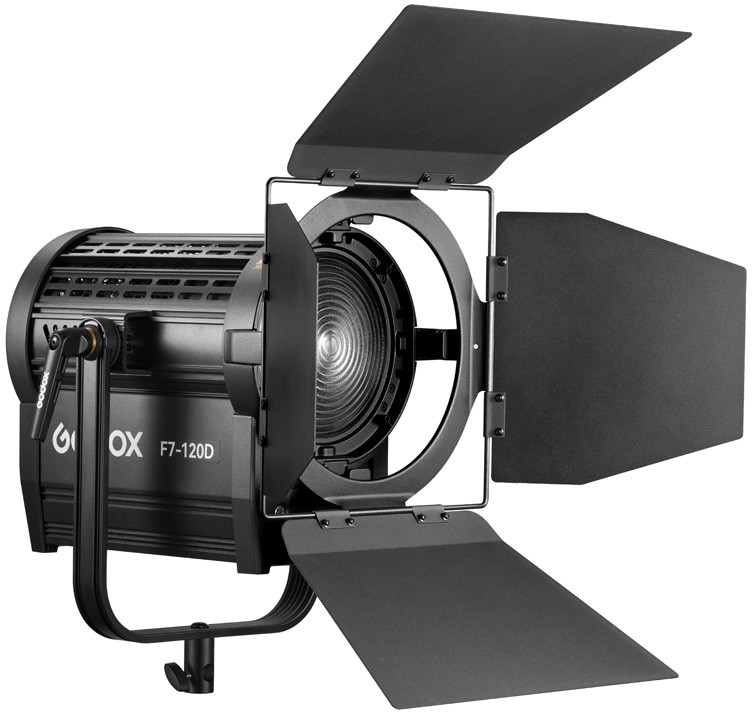

Four-Leaf Barn Doors

The F7-120D is equipped with four-leaf barn doors for additional control over the shape and direction of the beam. The leaves can be adjusted individually to limit unwanted spill and prevent light from reaching areas outside the intended composition. This is particularly useful for stage lighting, studio sets, interviews, product work, and situations where precise control of highlights and shadows is required.

Accurate Daylight Color

With a fixed color temperature of 5600K, the F7-120D is designed to provide a consistent daylight-balanced source throughout operation. Its CRI is rated at approximately 96 or higher, while TLCI is approximately 98 or higher, supporting accurate color reproduction for both photography and video. The fixture is also designed to provide stable, flicker-free illumination for professional camera work.

Silent Operation and Professional Control

The fixture uses a fanless cooling design, making it particularly suitable for environments where operating noise can interfere with recorded sound. Brightness can be continuously adjusted from 0% to 100%, while the fixture can be controlled directly from its onboard panel, remotely through DMX512, or via Bluetooth using the Godox Light app. Bluetooth control is available at distances of up to approximately 30 meters under suitable conditions.

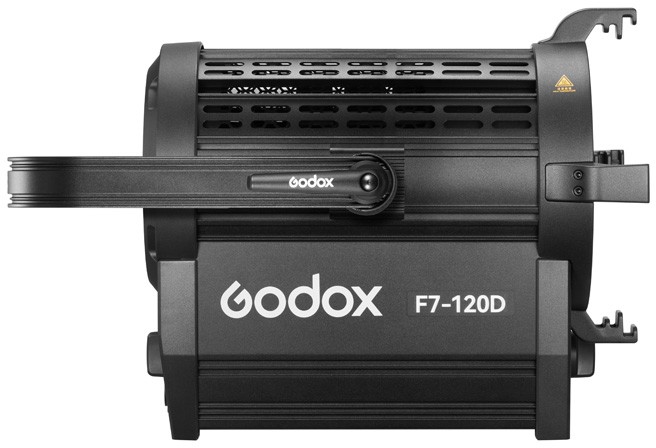

Durable Studio and Broadcast Construction

The F7-120D features a robust metal housing, a U-shaped mounting bracket, and a professional Fresnel spotlight configuration designed for extended use. It operates from AC 100–240V, 50/60Hz and has a working temperature range of approximately -20°C to +50°C. With the U-shaped bracket unfolded, its dimensions are approximately 509 × 324 × 381 mm and its net weight is approximately 7.62 kg, making it a substantial fixture suited to permanent studio, broadcast, stage, and professional production installations.

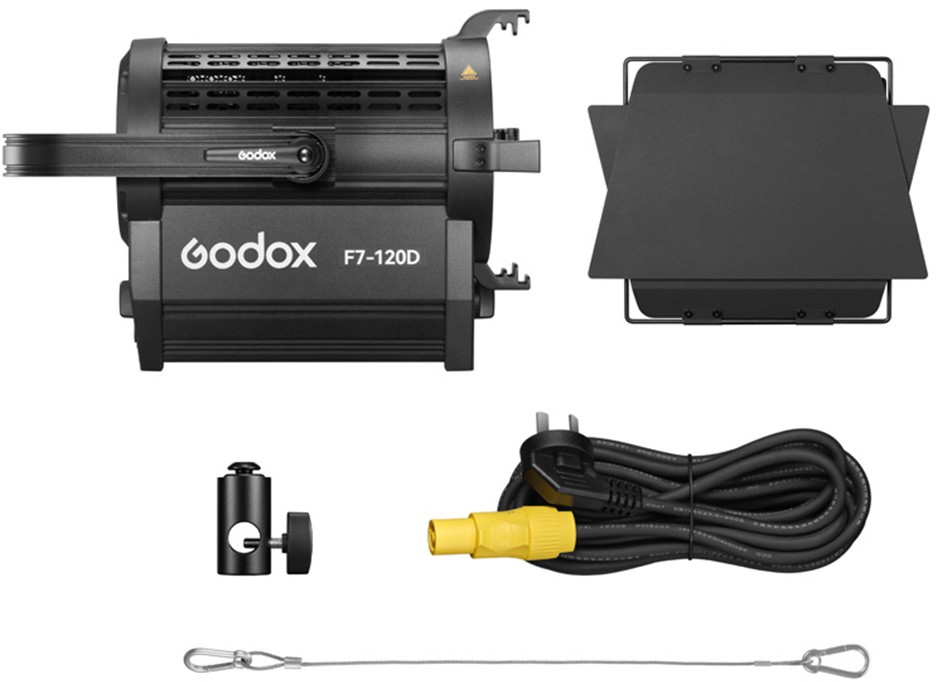

• Godox F7-120D Daylight LED Fresnel Light (Stand Mount)
• Yoke

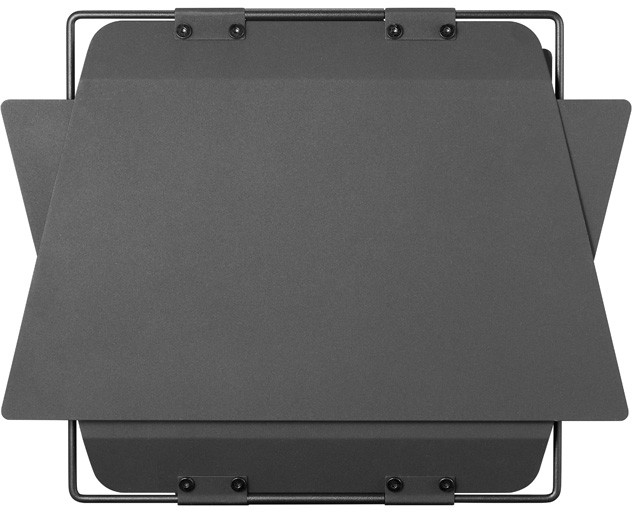

• Four-Leaf Barndoors

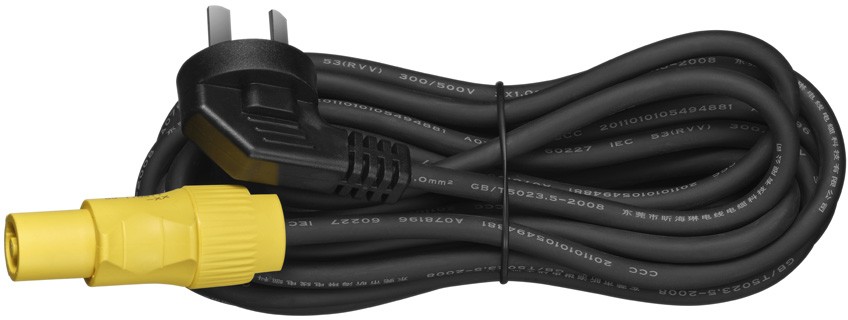

• Power Cord

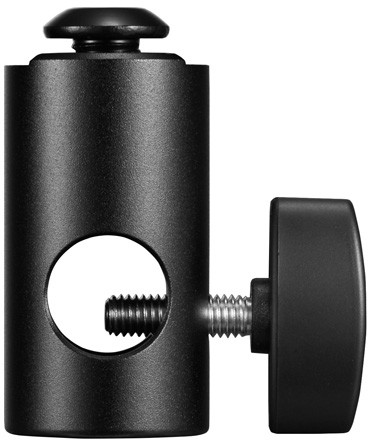

• Mounting Adapter
• Safety Cable
• Manual
