SMALLRIG SR 6024

Protective camera cage for Sony Alpha mirrorless cameras

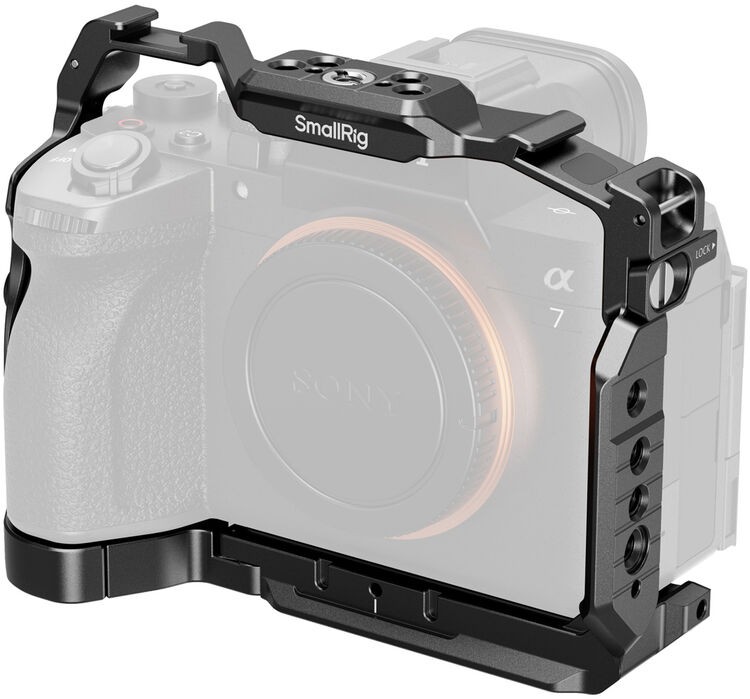

The SmallRig SR 6024 HawkLock Quick Release Cage is a full camera cage designed specifically for Sony Alpha 7 V, Alpha 7R V and Alpha 7 IV mirrorless cameras. It provides additional protection for the camera body while offering numerous mounting points for accessories used in professional photography and video production. The cage surrounds the camera with a precisely shaped metal frame, allowing users to build versatile configurations for handheld filming, tripod operation and stabiliser-based shooting. Its design incorporates the SmallRig HawkLock quick-release system, enabling convenient installation of compatible accessories. The combination of protective construction, extensive mounting options and integrated quick-release features makes the SR 6024 suitable for photographers and videographers who regularly adapt their equipment to different production requirements.

Secure three-point locking system and camera protection

The SmallRig SR 6024 uses a three-point locking system designed to secure the camera firmly inside the cage and minimise unwanted movement or twisting. This mounting arrangement helps maintain a stable connection between the camera body and attached accessories, particularly when using external monitors, handles or other equipment. Integrated silicone pads provide additional contact protection, helping prevent scratches and abrasion where the cage meets the camera body. The rigid metal construction also offers protection against incidental contact and minor impacts during regular operation. Precision-engineered mounting surfaces ensure that the camera remains correctly positioned within the frame. These features are particularly useful for professional camera rigs that are frequently assembled, transported and reconfigured during shooting sessions.

HawkLock quick-release system for efficient accessory mounting

The SR 6024 incorporates SmallRig's HawkLock quick-release system, providing convenient mounting points for compatible handles, clamps and other camera accessories. HawkLock NATO rails positioned on the top and side of the cage allow supported accessories to be attached and removed quickly without requiring extensive disassembly. This is especially beneficial when switching between handheld shooting, low-angle filming and more complex camera configurations. The quick-release design helps reduce setup time while maintaining a secure mechanical connection between compatible components. Traditional mounting methods can require repeated tightening and loosening of screws, whereas the HawkLock system simplifies adjustments during production. The cage can therefore serve as the foundation of a modular camera rig that can be expanded or reconfigured according to individual shooting requirements.

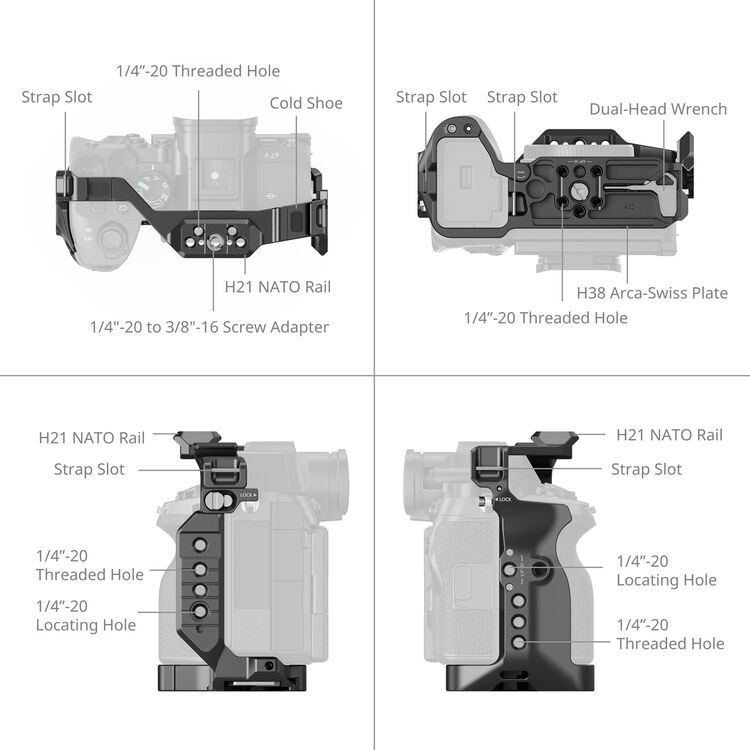

Multiple threaded mounts and cold shoe connections

The SmallRig SR 6024 provides a variety of mounting interfaces for integrating professional camera accessories. Multiple 1/4"-20 threaded holes allow users to install compatible articulating arms, mounting brackets and other equipment, while ARRI-style 3/8"-16 locating holes provide additional resistance to accessory rotation. The cage also incorporates cold shoe mounting points for devices such as microphones, compact LED lights and wireless audio receivers. These connections allow photographers and videographers to position essential accessories around the camera without relying exclusively on the camera's original accessory shoe. The combination of threaded mounts, locating interfaces and HawkLock rails supports a wide range of configurations, from compact handheld systems to more elaborate professional video rigs. Accessory compatibility depends on the mounting interface and the dimensions of the connected equipment.

Integrated Arca-Swiss plate for tripods and stabilisers

The base of the SR 6024 incorporates an Arca-Swiss-compatible quick-release plate, allowing the camera to be mounted directly onto compatible tripod heads and stabiliser systems without removing the cage. This feature simplifies transitions between handheld shooting, tripod-based photography and motorised stabilisation. The integrated plate supports compatible DJI RS-series stabilisers, including the RS 2, RSC 2, RS 3 Mini, RS 3, RS 3 Pro, RS 4 Mini, RS 4 and RS 4 Pro. The cage can also be used with compatible SmallRig HawkLock H38 Arca-Swiss quick-release mounting systems for convenient installation and removal. A QD socket at the base provides an additional connection point for compatible quick-detach shoulder straps. Together, these features support flexible camera handling and efficient changes between different shooting platforms.

Unobstructed camera controls and practical handling

The SmallRig SR 6024 is shaped to preserve access to the camera's essential controls and connections during normal operation. Precision cutouts allow users to reach the camera's buttons, control dials, ports and memory card compartment without removing the cage. The battery compartment remains accessible, enabling battery replacement while the camera is installed inside the frame. A hinged section near the battery compartment also provides additional support for the little finger, improving handling comfort during handheld shooting. The cage maintains access to the camera's original accessory shoe, allowing compatible equipment to be attached directly when required. A magnetic Allen wrench is integrated into the base for convenient installation and removal. These details help ensure that the protective frame supports everyday camera operation without unnecessarily restricting access to important functions.

Lightweight aluminium construction and compact dimensions

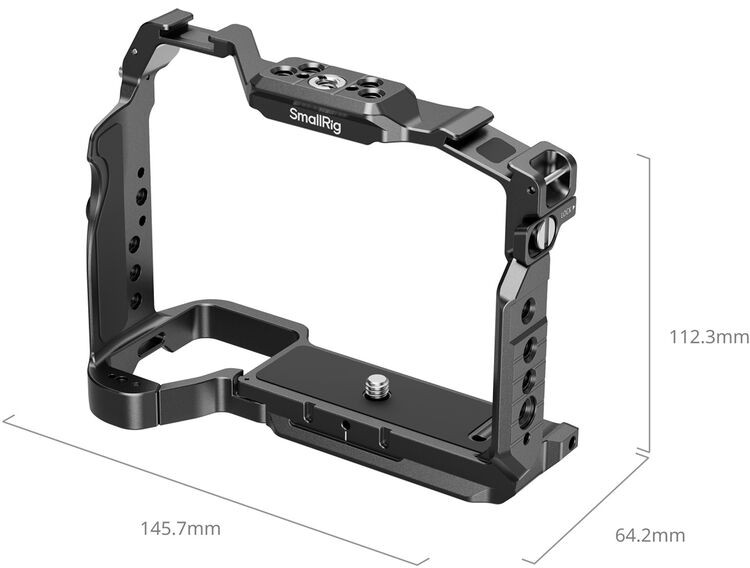

The SmallRig SR 6024 is manufactured from aluminium alloy, stainless steel and silicone, combining structural rigidity with protective contact surfaces. Its dimensions are approximately 145.7 × 64.2 × 112.3 mm, while its weight is approximately 163 ± 5 g. This relatively lightweight construction helps minimise additional bulk when building a camera rig, making the cage suitable for handheld operation and stabiliser use. The metal frame provides a durable foundation for attaching accessories while maintaining a compact profile around the camera body. The package includes one SmallRig HawkLock Quick Release Cage 6024 and operating instructions; handles, cable clamps and other expansion accessories are available separately. Combining three-point camera fixation, HawkLock quick-release interfaces, an integrated Arca-Swiss plate and numerous accessory mounts, the SR 6024 provides a practical foundation for professional Sony Alpha camera configurations.

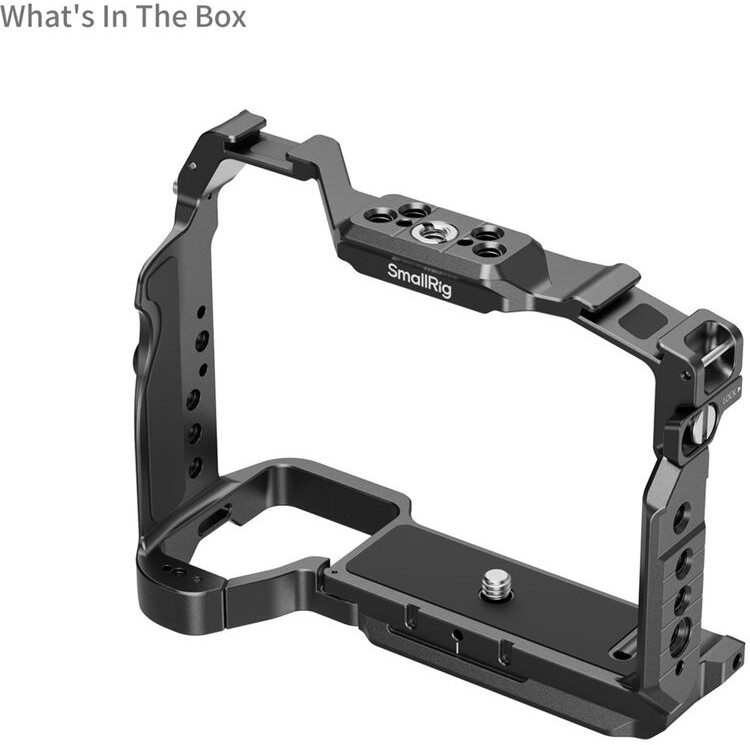

• SmallRig 6024 HawkLock Quick Release Camera Cage for Sony Alpha 7 V / 7R V / 7 IV ×1
• Operating Instructions ×1
