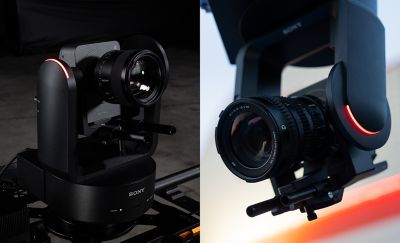

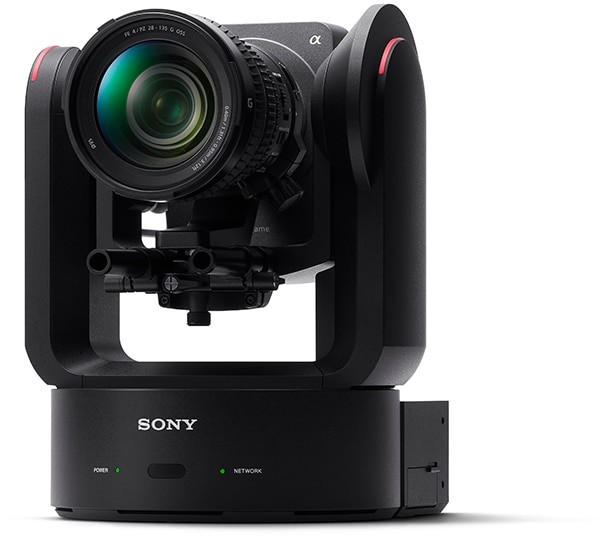

Remote control for creative camera placement

With its integrated, remotely controllable pan and tilt mechanism, the FR7 can be mounted on the ceiling or in other out-of-the-way locations. Follow your subjects or instantly recall pre-composed shot framings, for unprecedented creative potential.

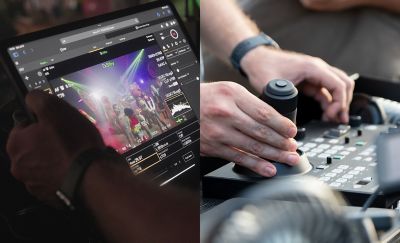

Innovative remote control

With a newly developed Web App that enables easy access via QR code or URL input, you can set up the FR7 from a tablet or a PC through a web browser. You can also use the optional Remote Control Panel (RCP), Master Setup Unit (MSU) devices and RM-IP500 for precise joystick-controlled pan, tilt and zoom operation.

Advanced technology for cinematic expression

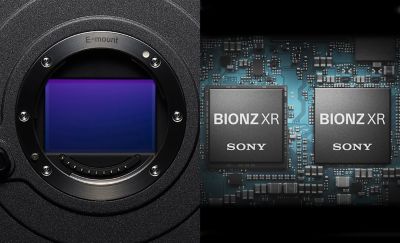

Bearing the Cinema Line name, the FR7 incorporates key features that support cinematic expression. The FR7 features a back-illuminated 35 mm full-frame CMOS image sensor for the first time5 in a pan, tilt and zoom (PTZ) camera. Also the BIONZ XR™ contributes to superb image quality with high sensitivity, smooth gradations, and true-to-life colour.

Limitless creativity with E-mount lenses

The FR7 features Sony's E-mount and can be used with all E-mount lenses. These include the superlative G Master series, known for its stunning resolution and beautiful bokeh. A choice of focal lengths ranging from 12 mm to 1200 mm gives you comprehensive creative control.

Cinema Line image quality

The FR7's "Cinema Line" name identifies it as part of a renowned line-up of creative tools designed to unleash the true power of visual storytelling. It provides Custom and Cine EI modes that adjust camera operation to your workflow while maintaining consistency with other Cinema Line cameras.

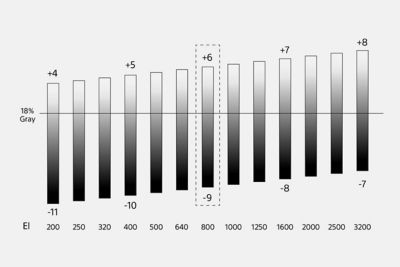

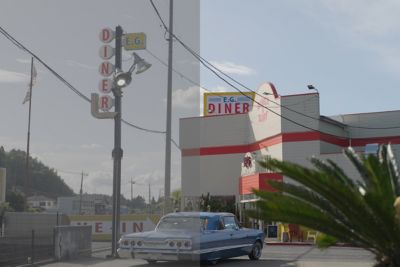

Staggering latitude for powerful expression

The FR7 offers wide 15+ stop latitude to prevent blown highlights and crushed shadows. In Cine EI mode, base sensitivity can be set to either ISO 800 or 12800 for a consistent look regardless of lighting conditions.

Astounding image quality in low light

The FR7 offers cleaner images in low light by taking full advantage of the sensor’s size and high sensitivity. ISO can be expanded as far as ISO 409600 when shooting in extremely low light conditions such as live concerts.

Slow motion for extensive creative possibilities

Smooth 5x slow motion provides extensive creative possibilities, making every moment clearer and more dramatic. The FR7 allows internal slow-motion capture at up to 120 fps in 4K resolution, and up to 240 fps in full HD.

4K 60p 4:2:2 10-bit output

The FR7 supports clean, high-quality output via its HDMI and SDI OUT connectors. This makes it possible to record Apple ProRes 422 or Avid DNxHR® in 4K 60p 4:2:2 10-bit format with compatible external recorders via an HDMI or SDI cable.

Support for S-Log3/S-Gamut3

The optional S-Log3 gamma curve and S-Gamut3.Cine let you capture the full colour gamut and dynamic range available to the sensor. They enable the retention of information in both highlights and shadows for flexibility in post-production.

All-Intra recording for precise motion capture

The FR7 is capable of 4K internal recording with 10-bit depth and 4:2:2 colour sampling with All-Intra and Long-GOP compression. This makes it possible to push your colour grades further while still retaining natural gradation, for true editing freedom.

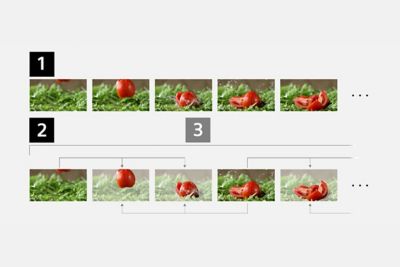

[1] All-Intra (ALL-I) [2] Long-GOP [3] Group of Pictures

An instant cinematic look with S-Cinetone™

S-Cinetone produces the natural mid-tones essential to healthy-looking skin, plus soft colours and gorgeous highlights. Beautiful cinematic images can be created in-camera, without extra colour grading.

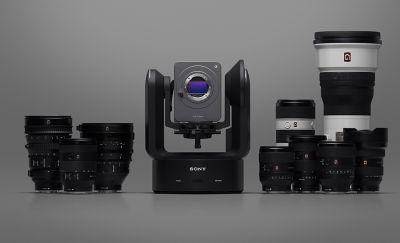

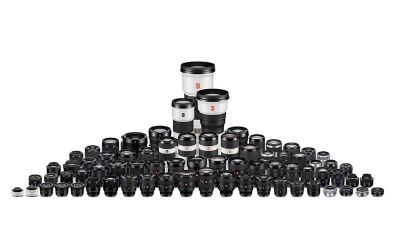

A wide variety of lenses to deliver your vision

The FR7 features Sony's E-mount and can be used with high-quality E-mount lenses, including the superlative G Master series, known for its stunning resolution and softly dissolving bokeh. A choice of focal lengths ranging from 12 mm to 1200 mm gives you full creative control.

Exquisite, impressive bokeh

Taking advantage of the camera's full-frame sensor and Sony’s extraordinary line-up of lenses, you can create expressive bokeh effects with a shallow depth of field – an impossibility with other PTZ cameras. Using a prime lens such as an F1.2 lens will help achieve cinematic-style visual effects where the subject stands out from the background dramatically.

Compatible with third-party lens controller

Zoom operation of a manual zoom lens is capable from the Web App, RM-IP500 , or the infrared remote control by connecting a third-party lens controller that is compatible with the FR7. Even telephoto zoom lenses that do not support power zoom can be operated remotely.

Capture the scene from any angle

The FR7 incorporates smooth pan, tilt and zoom functionality that can be remotely controlled, or recalled to preset positions. The pan angle range is from -170° to +170°, and the tilt angle range is from -30° to +195° when used in normal upright orientation.

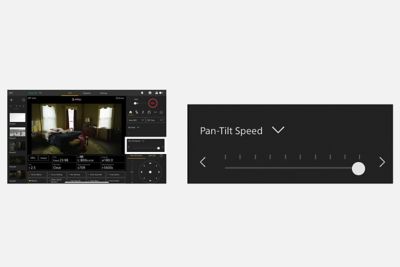

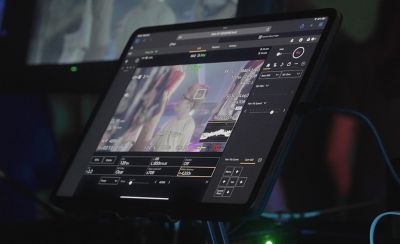

A full-featured dedicated Web App

With a new dedicated Web App, you can use a tablet or a computer's web browser to pan, tilt, zoom, focus, record, and adjust all camera settings. You can access cameras in hard-to-reach locations with easy setup using each camera’s unique QR code. The Web App uses the same menu format as the FX6 for intuitive operation.

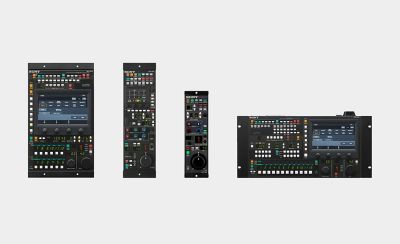

Professional control via S700PTP protocol

The FR7 also supports control of compatible Sony cameras via Ethernet using S700PTP protocol. This allows the FR7 to be controlled from Sony’s Remote Control Panel (RCP) and Master Setup Unit (MCU) devices, providing high-level control in multi-camera systems that combine the FR7 with Sony’s BRC series PTZ cameras and system cameras.

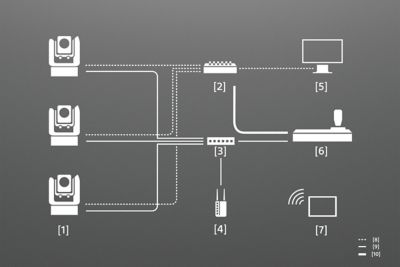

Multi-camera shooting with the FR7

The FR7 supports multi-camera production with just a small staff. A single RM-IP500 remote control unit can be used for a setup of up to 100 FR7 cameras (10 groups of 10 cameras).

[1] FR7 [2] Video switcher [3] Switching hub [4] Wi-Fi router [5] Video monitor [6] RM-IP500 [7] Tablet [8] Video signal [9] Remote control signal [10] Tally signal

Multi-camera shooting with professional cameras

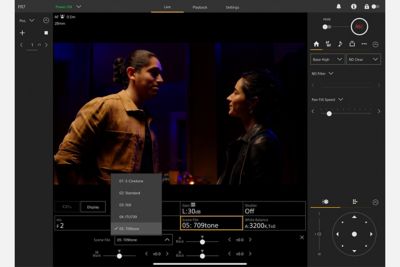

FR7 Ver.2.0 supports the new look “709tone” to reproduce colors that match the spectral characteristics of Sony professional cameras. The look can be easily selected via the Web App without complication, for quick camera setup.

Fine-tuned control over camera movement

Pan and tilt speed can be continuously varied from 0.02 degrees per second to 60 degrees per second, for flexible subject tracking and production scenarios.

Up to 100 preset camera positions

The supplied remote controller, dedicated FR7 Web App and RM-IP500 can remember up to 100 camera presets (camera direction, zoom and focus). Presets can be recalled at the touch of a button.

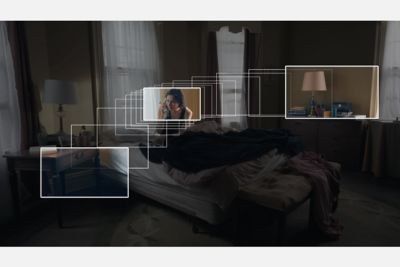

PTZ trace for highly-repetitive camera framing

FR7 Ver.2.0 can record camera framing operations using the Web App or RM-IP500, and playback the pre-recorded framing operations simply by pressing a button on the Web App. Up to 16 operation patterns can be stored for up to 180 seconds.

Reliable autofocus for remote shooting

For remote setting, the FR7 locks onto fast-moving subjects quickly and tracks them tenaciously even in low light, using 627 selectable phase-detection AF points and the powerful BIONZ XR processor.

Real-time Tracking for remote shooting

Concentrate on composition and leave focusing up to the camera. In the FR7’s Web App, Touch Tracking starts autofocus for your chosen subject, complete with Real-time Tracking for professional and efficient production.

Real-time Eye AF for remote shooting

Underpinned by the BIONZ XR processor, the FR7 offers reliable AF performance, indispensable for remote shooting. Pinpoint eye focus tracks an eye even when subjects are looking up or down at a steep angle.

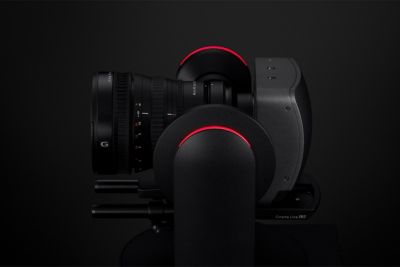

Tally lights to facilitate multi-camera production

The FR7's red and green tally lights make it easy to identify which camera is currently active (on-air) in a multi-camera setup. A red tally light can identify the on-air camera while a green tally light indicates the preview camera.

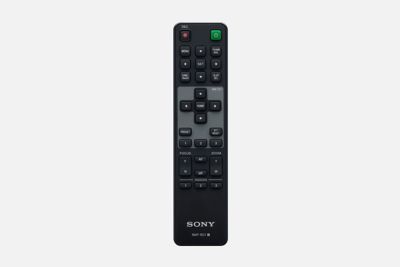

Supplied infrared remote controller

The infrared remote controller included with the FR7 controls pan, tilt, zoom and focus (with presets available) as well as recording and playback.

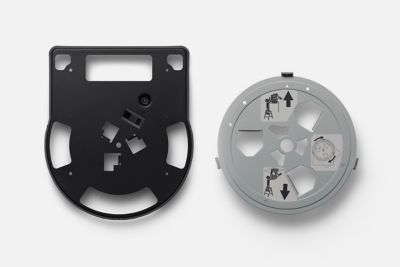

Dedicated ceiling mount bracket CIB-PCM1

The FR7 is compatible with the CIB-PCM ceiling mount bracket3 for easy overhead setup. The "Ceiling" option in the Web App flips the control directions, for natural operation even with the camera mounted upside down.

LAN and PoE++ connector

The FR7 can be powered with an external PoE++ (Power over Ethernet Plus Plus) device via a standard network cable (CAT5e or higher), eliminating the need for separate power supply cabling.

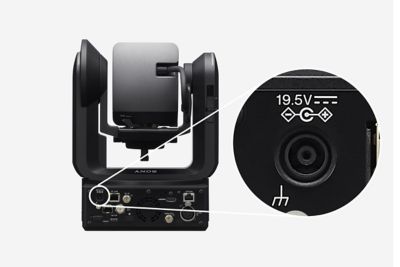

DC IN connector

If not using PoE++, the supplied AC adaptor connects to the FR7's "DC IN" connector to power the unit. The cord clamp on the rear panel of the FR7 can be used to prevent the power cable from being accidentally unplugged.

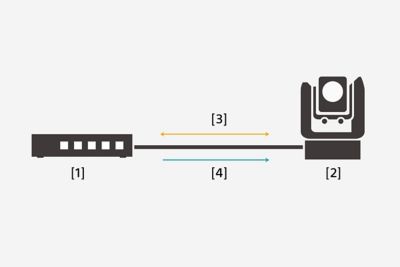

[1] Network Switch [2] FR7 [3] Data [4] Power

Support for multiple protocols to meet your streaming needs

RTSP streaming allows video output from one camera to be simultaneously distributed to up to five viewers. SRT enables high-quality, low-latency video transfer even in unstable network conditions. And NDI|HX connects to NDI compatible devices such as switchers and media servers, supporting efficient live video production using Internet protocols.
